Tunnel Mixer Truck

Tunnel Mixer Truck

Introduction:

Height and width can be customized.

Driving direction can be single or dual.

Mixer tank capacity can be customized.

Two-wheel drive or four-wheel drive is optional.

Add To Cart

Inquire Now

Introduction
Specification

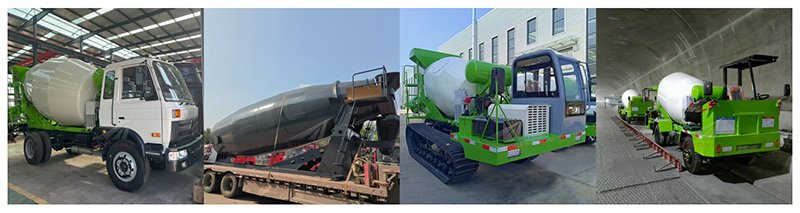

Tunnel mixer truck is suitable for confined environments such as basements, tunnels, and water tunnels.
Height and width can be customized.
Driving direction can be single or dual.
Mixer tank capacity can be customized.
Two-wheel drive or four-wheel drive is optional.

ITEM	TUNNEL MIXER TRUCK
Capacity	3m3
Wheel base	3200mm
Engine	Yunnei 4102 turbo or customized
Tyre qty.	6
Tyre	750R16
Brake system	Air brake
Steer system	Hydraulic steering
Water system	120L
Hydraulic system	Open circuit (closed circuit is optional)
Max. speed	60km/h
Weight	4250kg
Overall dimension	7100x2150x3000mm
Tank material	BW300TP high strength wear-resistant steel, shot peening anti-rust treatment
Blade material	Alloy steel
Sealing end material	Alloy steel for both sealing ends.
