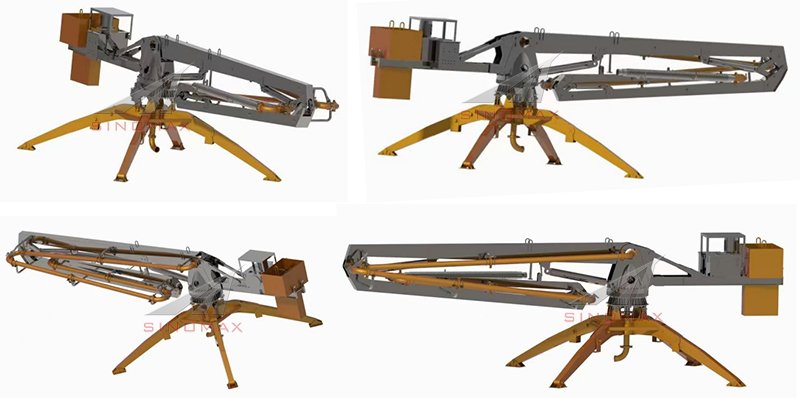

Spider Placing Boom

Introduction:

1. Driven by fully hydraulic system, stable and reliable.

2. 360°slewing with wide placing range.

3. Compact structure, light weight, whole boom can be lifted by tower on site easily.

4. Inclined outriggers ensure the working status is stable and fixed.

5. Easy operation, operation mode could be radio, cable and panel control.

6. Modular design could be customized according to the lifting load on site.


Add To Cart
Inquire Now
  • Introduction
  • Specification

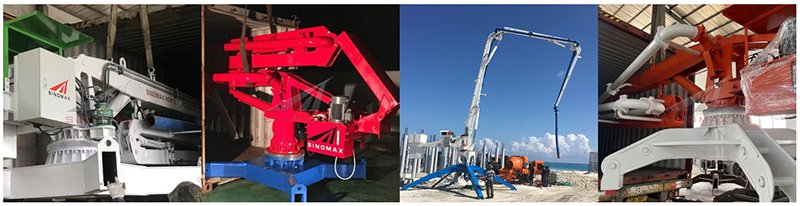

  • Picture

  • 1. Driven by fully hydraulic system, stable and reliable.

    2. 360°slewing with wide placing range.

    3. Compact structure, light weight, whole boom can be lifted by tower on site easily.

    4. Inclined outriggers ensure the working status is stable and fixed.

    5. Easy operation, operation mode could be radio, cable and panel control.

    6. Modular design could be customized according to the lifting load on site.


  • ITEM

    UNIT

    MODEL

    HGY13

    HGY15

    HGY17

    HGY18

    HGY21

    Max. Placing Radius

    m

    13

    15

    17

    18

    21

    1st

       section

    Length

    m

    3.7

    6

    6.7

    7.2

    8.25

    Articulation

    °

    0-85

    2nd section

    Length

    m

    4.5

    5

    5.7

    6

    6.85

    Articulation

    °

    0-180

    3rd

       section

    Length

    m

    4.8

    4

    4.6

    4.8

    5.9

    Articulation

    °

    0-180

    Machine Height

    m

    3.9

    2.6

    3.2

    3.2

    3.75

    Slewing Range

    °

    360

    Slewing Speed

    r/min

    0.3-0.8

    Motor Power

    Kw

    4

    4

    5.5

    5.5

    7.5

    Power Supply

    -

    380V/50HZ (Could be customized)

    Hydraulic Pressure

    MPa

    24

    25

    25

    26

    28

    Supporting Legs Span

    m

    3.15×3.15

    4×4

    4.5×4.5

    4.5×4.5

    5×5

    Length of End Hose

    mm

    3000

    Delivery Pipeline Diameter

    mm × mm

    ø 133×4.5

    Weight

    Machine Weight

    Kg

    2700

    3230

    4900

    5100

    6800

    Counter Weight

    Kg

    2×900

    2×1100

    2×1100

    2×1100

    2×1100

    Operation Mode

    -

    Radio/ Cable Remote/Panel Control
