SR3016 Track Shotcrete Robot

Introduction:

SR3016 Track Shotcrete Robot, Concrete Shotcrete Machine, Concrete Spraying Machine

Add To Cart
Inquire Now
  • Introduction
  • Specification

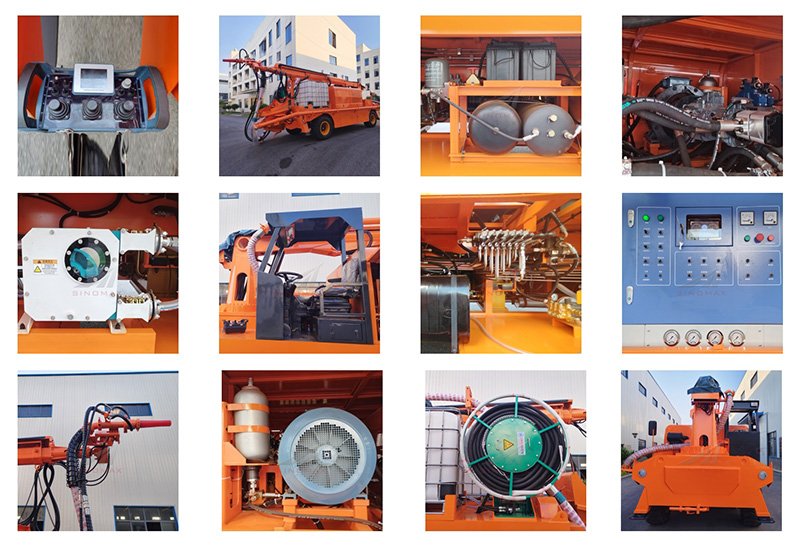

  • Picture
  • Video

  • Vertical spraying reach: 16 M

    Horizontal spraying reach: 13.5 M

    Max. Spraying depth: 7.5 M

    Max. Pumping capacity: 30 M3/H

    Two telescopic arm reaching 12 M. and 270 ° horizontal rotation.


  • SR3016 Track Shotcrete Robot Parameter

    1. Whole Equipment

    Overal dimension

    mm

    7898x2650x3310 mm

    Overall weight

    kg

    16000 kg

    Driving

    -

    4 WD

    Engine

    Kw

    95.6

    Wheel base

    mm

    4200

    Track base

    mm

    2218

    Maximum speed

    Km/h

    20

    Maximum climbing angle

     °

    30

    Ground clearance

    mm

    310

    Minimum turning radium

    m

    11

    Braking distance

    m

    5 (20km/h）

    2. Telescopic Spraying Arm

    Vertical spraying reach

    m

    16m

    Horizontal spraying reach

    m

    13.5m

    Max. spraying depth

    m

    7.5m

    Number of arm extensions

    -

    2 telescopic

    Big arm rotation

     °

    270

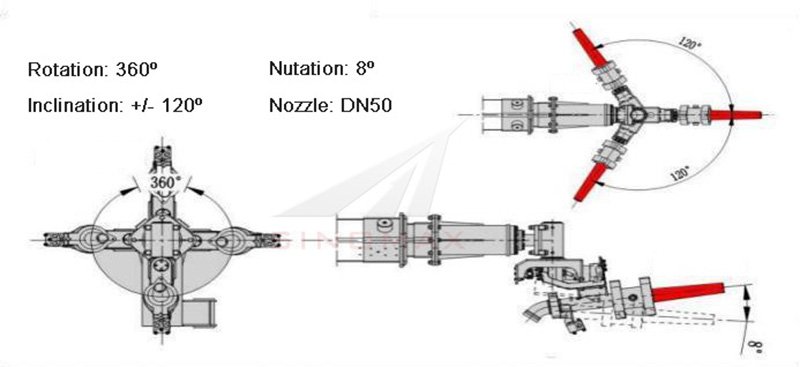

    3. Spraying Head

    Rotation

     °

    360

    Inclination

     °

    ±120

    Nutation

     °

    8

    Nozzle

    mm

    DN50

    4. Concrete Pump

    Max. Theorectical capacity

    m³/h

    30

    Type

    -

    Two piston, hydraulic

    Pumping and spraying driving motor

    Kw

    55kw

    Voltage

    V

    380 (could be customized)

    Oil cylinder

    mm

    ф 100x70x1000

    Concrete cylinder

    mm

    ф 180x1000

    Delivery pipe

    mmm

    ф 125~ф 90 reducing

    Max aggregate size

    mm

    16

    Concrete outlet pressure

    Bar

    80

    Hopper capacity

    L

    400

    5. Additives system

    Additives flow

    L/H

    0-1000

    Max. Working pressure

    Bar

    12

    Driving mode

    -

    Variable frequency motor

    Additives tank

    L

    1000

    5. Control system

    Control mode

    -

    Radio/Cable

    Cable length

    m

    80

    6. Cleaning system

    Water tank

    L

    150

    Drive mode

    -

    Hydraulic drive



Inquire Now
