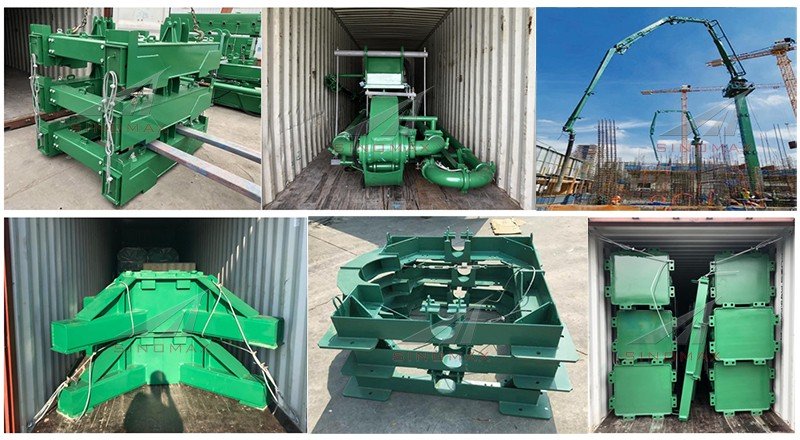

Climbing Placing Boom

Introduction:

Floor climbing placing boom, elevator climbing placing boom with boom length 28m, 32m, 33m and 36m.

Add To Cart

Inquire Now

Introduction
Specification

1. Climbing placing boom with boom length 28m, 32m, 33m and 36m.
2. Compact structure, modular design, reduces the lifting load requirement on site.
3. Climbing system could be floor climbing or elevator shaft climbing.
4. Column length could be customized according to customer’s requirements such as 4m, 5m or 10m.
5. Could be used as stationary placing boom fixed on foundation.

ITEM		UNIT	MODEL
			HGY28-3R	HGY32-3R	HGY33-4R	HGY36-4R
Max. Placing Radius		m	28	31.7	32.9	35.4
Free Standing Height		m	23 (to the joint between boom end and slewing platform)
Cross Section of Column		mm	750×750
Slewing Range		°	360
Total Weight		Kg	18600	19200	20500	21000
Counter Weight		Kg	-	-	-	2x2500
Power Supply		-	380V/50HZ (Could be customized)
Motor Power		Kw	11	11	30	30
Hydraulic Pressure		Mpa	30	32	32	33
Delivery Pipeline Diameter		mm × mm	ø 133×4.5
Length of End Hose		m	3000
1st Section	Length	m	10.5	14.5	8.9	11.4
	Articulation	°	0-85
2nd Section	Length	m	9.2	9.2	8	8
	Articulation	°	0-180
3rd Section	Length	m	8	8	8	8
	Articulation	°	0-180
4th Section	Length	m	-	-	8	8
	Articulation	°	-	-	0-180
Min.Space between Climbing Frame	Climbing	m	3
	Placing	m	6
Wind Speed	Placing	Km/h	≤60
	Climbing	Km/h	≤28
Circumstance Temperature		℃	-20-60
Operation Mode		-	Radio/ Cable Remote Control
Climbing Mode		-	Floor Climbing or Elevator Shaft Climbing
