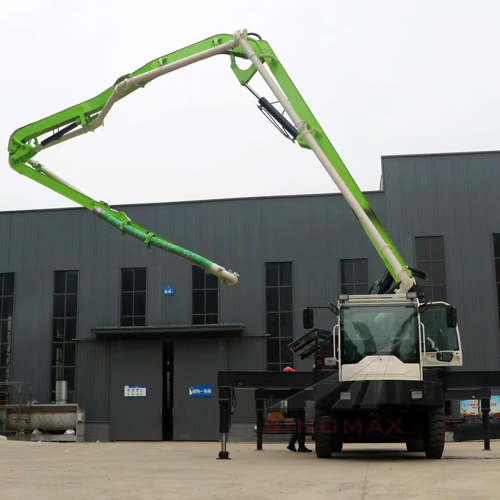

ITEM | UNIT | PARAMETER |
Boom System | Vertial reach | m | 17.5 |
Horizontal reach | m | 15.6 |
Boom type | - | R |
1st section | mm | 6100 |
2nd section | mm | 4500 |
3rd section | mm | 5000 |
Rotation | ° | 360° |
Front outrigger spread | mm | 4100 |
Rear outrigger spread | mm | 4400 |
End hose length | mm | 3000 |
End hose diameter | mm | 125 |
Pipleline size | mm | 125 |
Pump System | Max. theoretic output | Low pressure | m³/h | 90 |
High pressure | m³/h | 50 |
Max. theoretic pressure | Low pressure | MPa | 9.5 |
High pressure | MPa | 5.6 |
Type of distribution valve | - | S tube valve |
Main oil cylinder ( cylinder dia./role dia.× stroke) | mm | Φ125/Φ80×1400 |
Delivery cylinder diameter/stroke length | mm | Φ230x1400 |
Volume of hopper | L | 680 |
Discharging height | mm | 1420 |
Power system | Power of diesel engine | Kw | 103 |
Rated revolution | r/min | 2000 |
Hydraulic system | Type of hydraulic system | - | Open circuit |
Hydraulic oil tank capacity | L | 550 |
Hydraulic pump rated flow | L/Min | 280 |
Hydraulic system oil pressure | Mpa | 32 |
Hydraulic oil tank volume | L | 550 |
Hydraulic oil cooling type | - | Fan cooling |
Other parameters | High and low pressure switch | - | Equipped |
Electric lubricating system | - | Equipped |
Maximum speed | Km/h | 8 |
Control | - | Manual/Cable/Radio |
Dimension (length×width× height) | In transit | mm | 6500×1900×2800 |
Weight | Kg | 13000 |
