Stationary Concrete Batching Plant

Introduction:

Stationary Concrete Batching Plant with capacity from 25 to 240m3/h.

Add To Cart

Inquire Now

Introduction
Specification

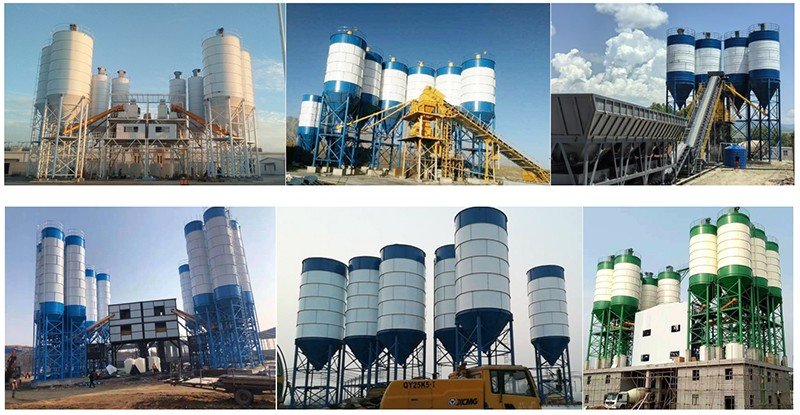

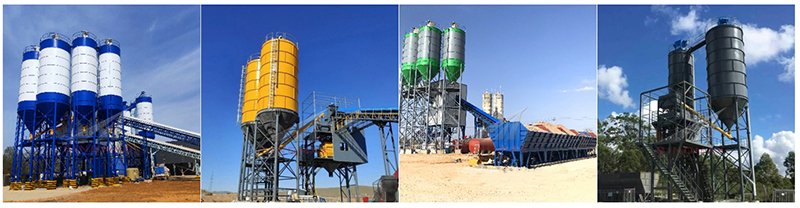

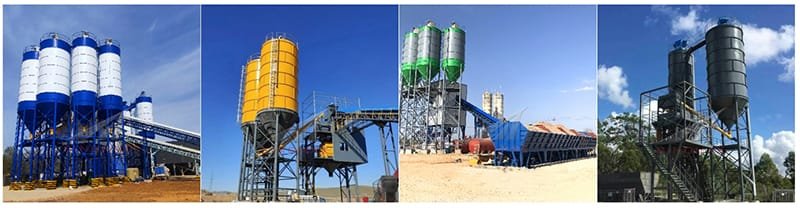

HZS series stationary concrete batching plant is widely used in big or medium building projects, road and bridges projects, precast factories, concrete block and pipe factories, etc. It is also an ideal choice for commercial concrete.

It is fully automatic control with PC+PLC. Aggregate feeding could be Belt Conveyor Type and Lifting Hopper Type. Usually for small plants like 25m3/h, 35m3/h, 50m3/h, 75m3/h, it is Lifting Hopper Type. For 90m3/h, 120m3/h, 150m3/h, 180m3/h and 240m3/h plants, it is Belt Conveyor Type.

Model		HZS25	HZS35	HZS50 (60)	HZS75 (90)	HZS120	HZS180	HZS240
Productivity (m3/h)		25	35	50 (60)	75 (90)	120	180	240
Mixer capacity (m3)		0.5	0.75	1	1.5	2	3	4
Aggregate batcher		PLD1200	PLD1200	PLD1600	PLD2400	PLD3200	PLD4800	PLD6400
Discharging height (m)		3.8	3.8	3.8	3.8	4	4	4
Cycle time (s)		60	60	60	60	60	60 (72)	60 (72)
Weighing accuracy	Aggregate	±2％	±2％	±2％	±2％	±2％	±2％	±2％
	Cement	±1％	±1％	±1％	±1％	±1％	±1％	±1％
	Water	±1％	±1％	±1％	±1％	±1％	±1％	±1％
	Additive	±1％	±1％	±1％	±1％	±1％	±1％	±1％
